14pin Waterproof Circular Connector

Name: 14pin Waterproof Circular Connector
Brand: Ebuddy
Price: 1 USD

Brand Name : Ebuddy

Model Number : PHG.0K.306.CLLC

Certification : CE.ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T，Paypal

Supply Ability : 10000pcs per month

Packaging Details : pp pag

Matching parts : FGG.1K.314.CLAC

Shell Style/Model : EG*: Fixed receptacle, nut fixing

Housing Material : Brass (chrome plated)

Endurance (Shell) : 5000 mating cycles

Temp (min / max) : -55°C / +200°C

IP Rating : IP68

Contact Now

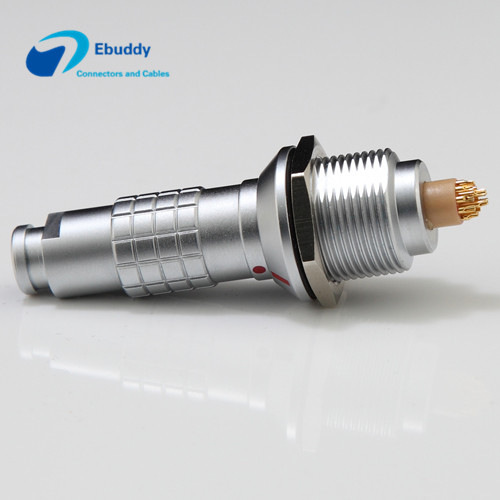

EGG female socket 14pin waterproof circular connector 1K 314 Lemo compatible female connectors

Description:

Lemo compatible 1K 14pin female connector
Female solder, can do cable assembly
Good quality with Endurance (Shell) 5000 mating cycles
0K 1K 2K size for your option
Pins: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin 14pin 16pin 19pin 26pin
Fast delivery time: 3-5working days for usual models
Warranty time: 1 year, any problems in warranty time, we will fix it for free or replace new one for you, shipping cost paid by us
Application: Camera, medical, Instrumentation, Industry,Energy
IP68, waterproof and Dust-prrof, Completely prevent foreign invasion

Contacts No.:

00B sizes: 2, 3 and 4
0B sizes: 2 3 4 5 6 7 and 9
1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 ,14 , 16
2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 , 26, 32

Connector custom service:

Ebuddy can supply most of original Lemo/fischer//ODU compatible connectors, if there are some models we didn’t produce at present, please no worry we can do custom for you. In this way, there are 2 ways to do this :

You send us the connector specification, we will do according to it.
Another way, if possible, you can send us a connector sample, we will do the same, it is perfect.

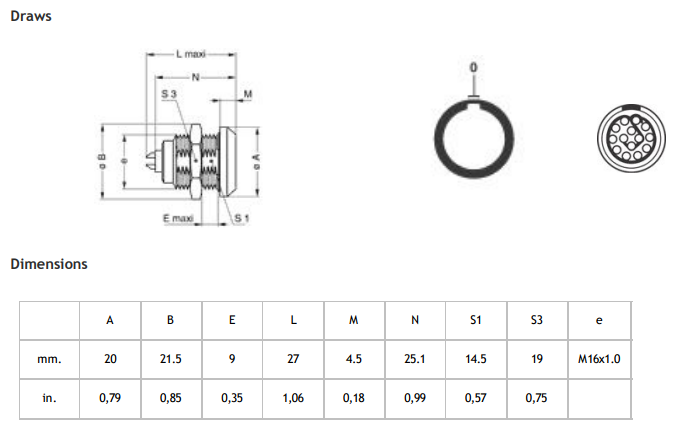

Size and Drawing

14pin Waterproof Circular Connector
